| SKU:
80310-AH004
HKS Hipermax R Coilovers - HONDA CIVIC TYPE R FD2
Honda Civic Type R - FD2
$3,790.00 AUD
Unit price
/
Unavailable
Special Order 2-3wks
Backordered
Couldn't load pickup availability
SKU
SKU
Shipping and Delivery
Shipping and Delivery
Application
Application
Notes
Notes
Inventory Status Details
Stock levels are verified and updated in real time for accurate availability
- In Stock: Product is in stock & ready to be dispatched.
- Low Stock: Limited stock remaining - this product is almost gone.
- Out of Stock: Sold Out, this product is currently out of stock but will be restocking soon.
- Backordered: Product is currently not in stock and will be shipped once available. Backordered products are Special Order products, Made to Order products and Pre Order Wheels.
-
Arriving Soon/Incoming Stock: Product has been ordered and currently in production or on the way to our warehouse. Check each product for the estimated arrival time.
Labels:
- Special Order: Product is in stock at the manufacturer and can be ordered upon request.
-
Made to Order: Product will be made once an order has been placed.
Wheels Stock: - In Stock Wheels: Wheels are in stock & ready to be dispatched.
- Incoming Wheels: Wheels are currently not in stock however have been ordered and are on their way to Garage IMMI. Check each product for the estimated arrival time.
- Pre Order Wheels: Wheels are available for purchase in advance. Typically made to order, these wheels will be ordered from the manufacturer once payment or a deposit is received. Check each product for the estimated arrival time.

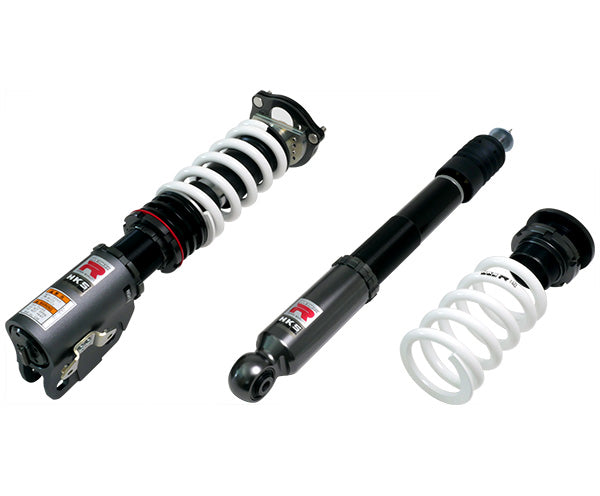

HKS Hipermax R Coilover Kit for Honda Civic Type R FD2 (2007–2010)
HKS Hipermax R Coilover Kit is engineered for drivers seeking an uncompromising balance of street comfort, precision handling, and track-capable performance. Designed specifically for the Civic Type R FD2, it offers fully adjustable damping and ride height for a tailored driving experience.
Key Features
- Adjustable Damping: 30-step adjustment on front and rear for fine-tuning suspension characteristics.
- Ride Height Adjustability: Front: 579–660 mm, Rear: 574–656 mm (fender to road surface) for visual stance and performance.
- Optimized Spring Rates: 137 N/mm (14 kgf/mm) front and rear, with ±20 N/mm adjustment capability.
- Superior Handling & Comfort: Inverted front dampers, normal rear dampers, and spherical bearing front mounts for precise suspension response.
- Helper Spring: Rear suspension includes 19.8 N/mm helper spring for improved stability and control.
Technical Highlights
- Damping force (Rebound / Compression, N): 539 / 481 (F), 843 / 549 (R)
- Spring type: Straight barrel, free height F 170 mm / R 150 mm
- Lever ratio: Front 1.11 / Rear 1.27 (spring), 1.24 (damper)
- Remaining damper stroke: Front 42 / 57 mm, Rear 28 / 65 mm
- Ride height and damping fully adjustable within safe driving limits
