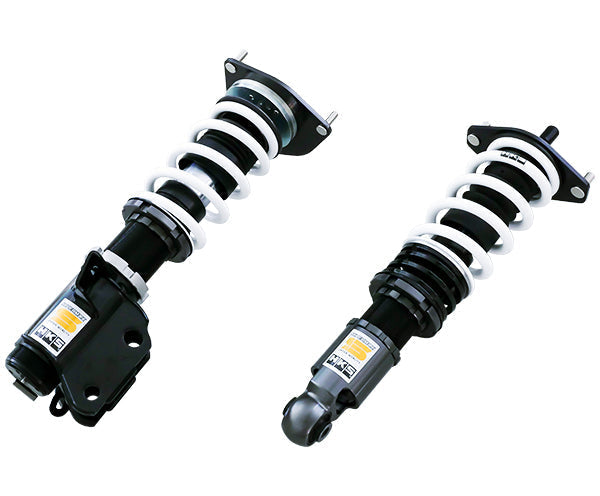

HKS HIPERMAX S Coilover Kit for Toyota GR86 / Subaru BRZ (ZN8/ZD8)
The HKS HIPERMAX S is engineered to set a new standard in driving comfort and performance. Balancing ride quality with precise handling, it offers confidence and stability for daily use while retaining sharp response for spirited driving. Designed through extensive HKS testing, the HIPERMAX S delivers uncompromising street performance with adjustability for stance or track needs.
Key Features:
- 30-step damping force adjustment (front & rear) for fine-tuning comfort and handling
- Wide range height adjustability for stance or performance goals
- Front spherical bearing upper mounts for sharper steering response, rear rubber mounts for comfort and stability
- Lightweight coilover design with inverted damper front / normal type rear
- Spring rates: Front 49 N/mm (5.0 kgf/mm) / Rear 64 N/mm (6.5 kgf/mm), with optional adjustment ranges
- Ride height adjustment range:
• Front: 670 mm ~ 614 mm (approx. -26 mm from stock at factory setting)
• Rear: 675 mm ~ 614 mm (approx. -28 mm from stock at factory setting)
Engineering Highlights:
Factory-tested settings for everyday drivability and balanced rebound/compression control. Stability is maintained across city driving, highway cruising, and spirited runs.
Application:
Toyota GR86 ZN8 (FA24) / Subaru BRZ ZD8 (2021/10 and later, MT 18-inch tested)

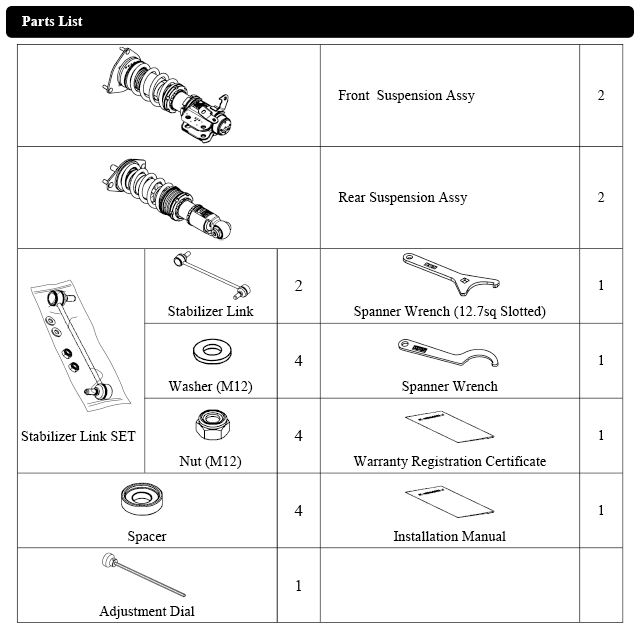

Kit Includes:
Front and rear coilovers (with springs)
Necessary mounts and adjusters
Rear helper spring (19.8 N/mm)
Note: Ride height settings may affect legality, suspension clearance, and warranty coverage. Data may vary depending on vehicle setup.
