PRL Motorsports Baffled Coolant Expansion Tank – Honda Civic Type R FK8/FL5

The factory plastic coolant expansion tank on the Civic Type R is prone to weakening and failure over time due to repeated heat and pressure cycles. PRL’s Baffled Coolant Expansion Tank is the ultimate upgrade, engineered from 3mm 6061 aluminum for superior strength, reliability, and longevity. Unlike the OEM tank, this robust design withstands higher pressures and extreme temperatures, ensuring years of trouble-free use.

Capacity is more than doubled, increasing from the stock .58 quarts (.55 liters) to 1.32 quarts (1.25 liters). This added volume allows for greater heat dissipation, improving cooling efficiency and safeguarding your engine under spirited driving or track use. Internal baffling prevents sloshing and cavitation, maintaining a consistent flow of coolant even in demanding conditions. Finished in a striking red or black anodizing with laser-engraved PRL logos, this expansion tank is as stylish as it is functional.

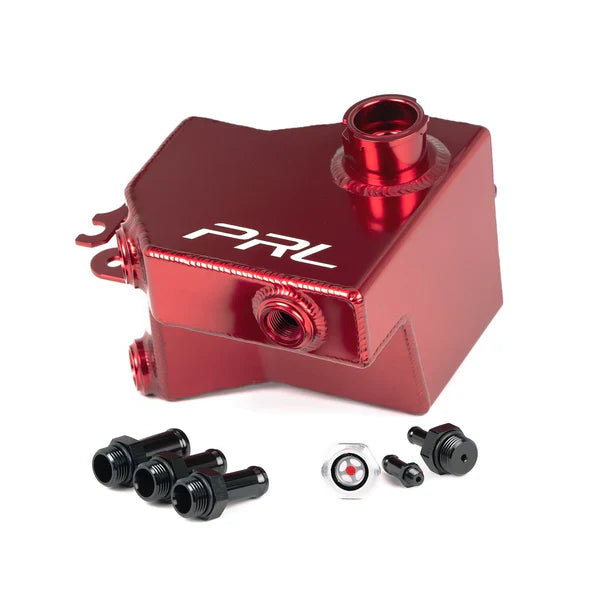

Compatible with both FK8 and FL5 Civic Type R, Integra Type-S, and 2016–2021 Civics with 1.5T engines. Complete kit includes all necessary billet fittings, O-rings, and hardware for a direct-fit installation.

Key Features

• 3mm 6061 aluminum construction for maximum durability

• Laser-cut and TIG-welded for a precise fit and finish

• Over double the coolant capacity compared to OEM (.58 → 1.32 quarts)

• Internal baffling prevents sloshing and cavitation under load

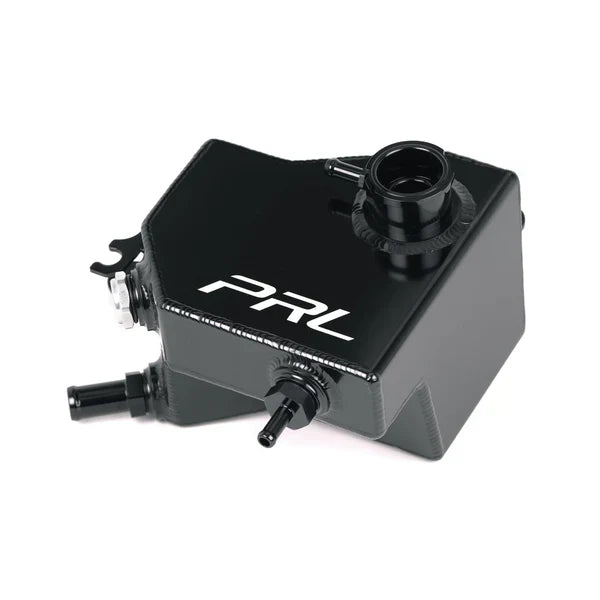

• Choice of red or black anodized finish with laser-engraved PRL logos

• Billet machined barb fittings and integrated sight glass

• Buna-N O-rings ensure superior leak and temperature resistance

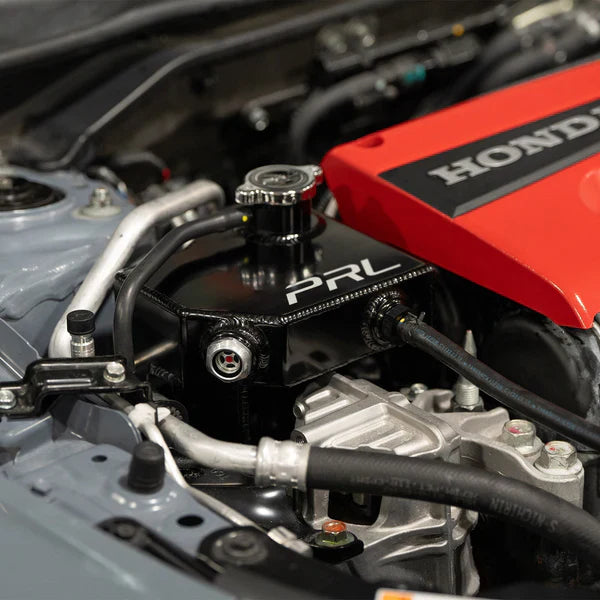

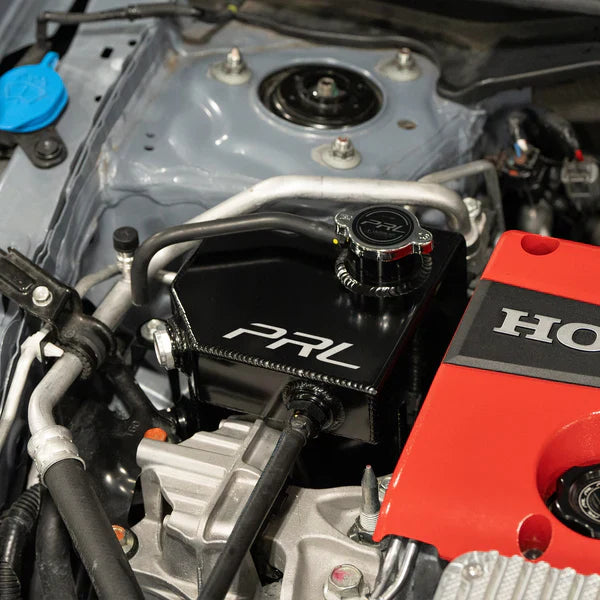

• Direct bolt-on fitment for FK8/FL5 Civic Type R, Integra Type-S, and 1.5T Civics
