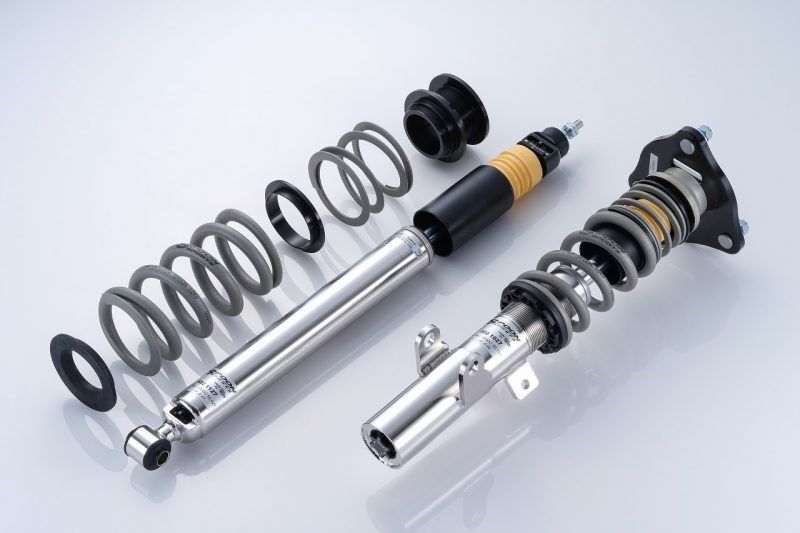

Spoon Sports Full Spec 2 Way Damper Coilover Kit - Honda Civic Type R FK8/FL5

Developed from Spoon Sports’ motorsports program at the 25 Hours of Thunderhill—competing with the FK8 in 2021 and the FL5 in 2023, this coilover kit is the direct result of real-world racing data and extensive testing. Built in collaboration with KW USA, the Full Spec 2-Way Damper system delivers the ultimate balance of street comfort and track performance.

With independent bump and rebound adjustment, camber-adjustable front upper mounts, and a finely tuned spring/damper setup, this system provides flexibility for any driving environment. From winding mountain roads to aggressive circuit use, the Spoon Sports coilovers ensure precise control, improved grip, and consistent ride quality.

Specifications:

• Spring Rates: Front 10 kgf/mm (140 mm ID60) / Rear 12 kgf/mm (170 mm ID70)

• Ride Height (vs stock, as shipped): Front −20mm / Rear −25mm

• Adjustment Range: Front 0 to −35mm / Rear 0 to −40mm

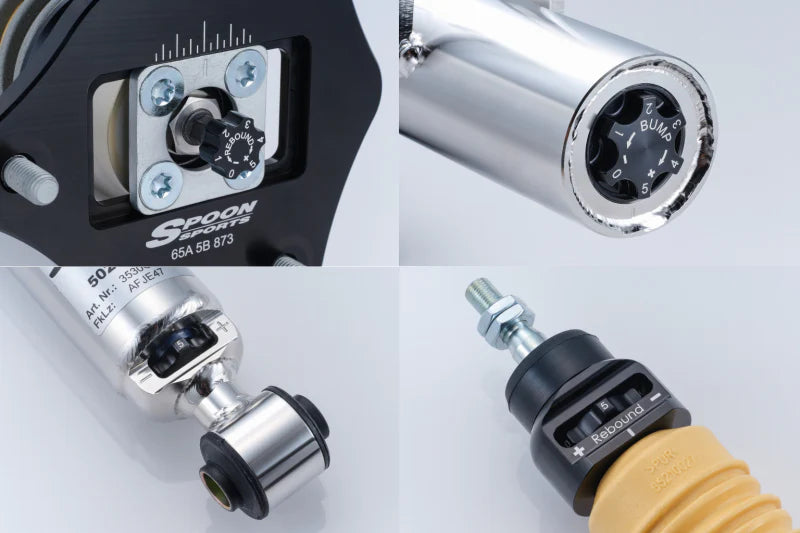

• Damping Adjustment: Bump (12 clicks) / Rebound (16 clicks)

• Recommended Settings: Front bump 6 / Rear bump 6, Front rebound 9 / Rear rebound 9

• Camber (as shipped): Front −2° / Rear −2°

Key Features:

• Motorsports-proven suspension developed from Thunderhill endurance racing

• 2-way adjustable damping with independent bump and rebound settings

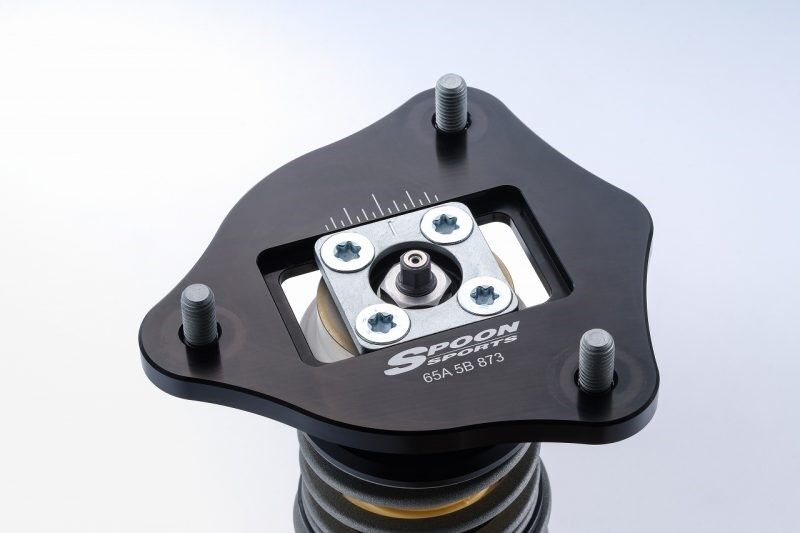

• Camber-adjustable front upper mounts for flexible alignment

• Dual-purpose design: smooth ride on street, precision on track

• Optimized ride height and jack clearance for daily and circuit use

• Durable build in partnership with KW USA


Included in Kit:

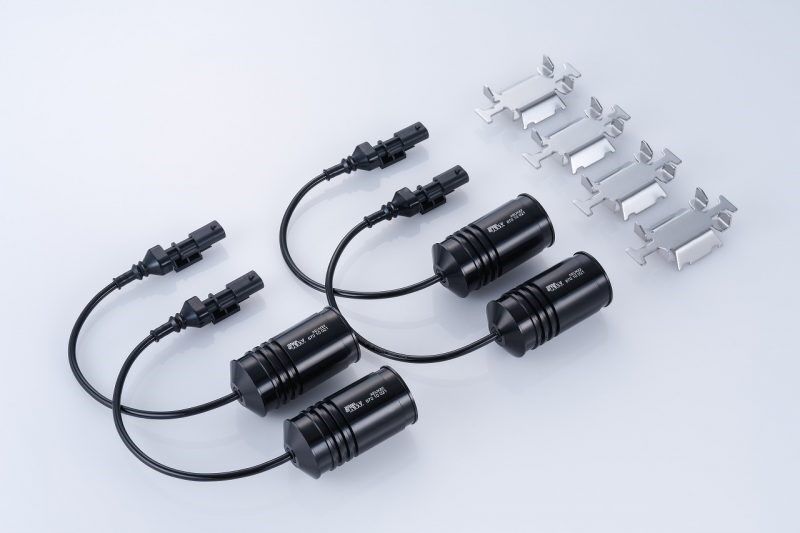

• Damper control canceller

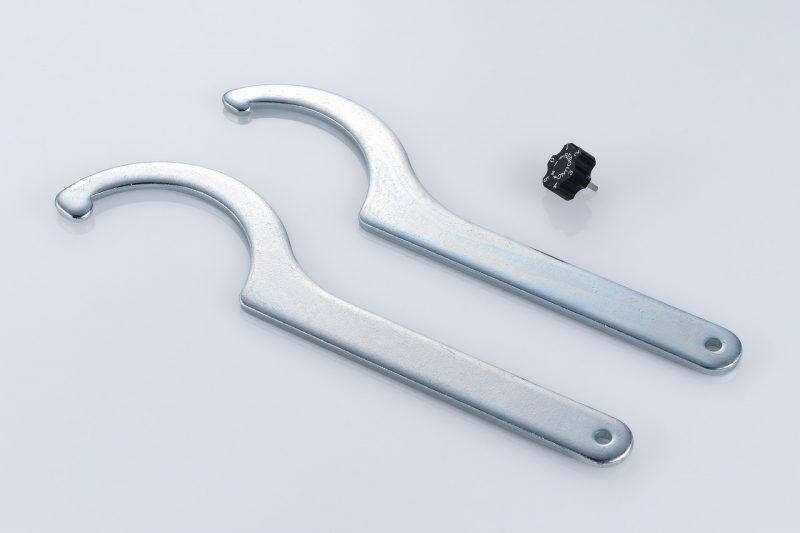

• Hook wrench

• Damping adjustment dial
